Saturday, October 23, 2010

The Final Curtain (almost)

Few quirks remains to be sorted. Overall the bike is within expectations The marriage between the RSD and the Tailgunner was a match.

OLYMPUS DIGITAL CAMERA         OLYMPUS DIGITAL CAMERA
OLYMPUS DIGITAL CAMERA         OLYMPUS DIGITAL CAMERA
OLYMPUS DIGITAL CAMERA         OLYMPUS DIGITAL CAMERA
OLYMPUS DIGITAL CAMERA         OLYMPUS DIGITAL CAMERA


Monday, October 18, 2010

The week end in review

For starters fixed my pump issues, mated the RSD with the Tailgunner exhaust. Other minor challenges rear turn signals bracket, badges yes lots of badges well only 3. The bike is starting to change shape and should be done to morrow, however cant drive it as I lost my registration papers.

66666_10150274330150290_657200289_15390050_1391973_n 72145_10150273994225290_657200289_15383406_3024650_n
37946_10150274335500290_657200289_15390147_7217918_n 66665_10150273994775290_657200289_15383425_5191643_n



Friday, October 15, 2010

Tail Gunner Exhaust Video 1 million Views



On its third posting anniversary posted on October 15, 2007. I am Truly overwhelmed by the number of hits that this video has generated. I would like to thank everyone for taking the time to view and comment on this short video. To be exact the number of views are 1,063,806 to date and counting.

Thursday, October 14, 2010

Bummer!

Phase one of the bike is done, however before I move on to cosmetical enhancement. I will have to deal with the no pressure issue, which by a mismounted spacer. Shit Happens! luckily the engine never run more than 10seconds at the time, when I discovered the oil light was not shutting off. Oh well I guess Saturday will be spend on tearing the cam plate and front end to be lowered. In the Meantime you can enjoy the new scheme.



stormer1 stormer2
71994_10150270574620290_657200289_15319806_7536964_n



Tuesday, October 12, 2010

Mobber Reborn

33715_10150268181440290_657200289_15275353_1999002_n

69420_10150268182425290_657200289_15275384_399971_n

T-2

33676_10150268188935290_657200289_15275514_6466516_n

Things have been progressing well so far! for the exception of the usual hiccups here and there. Yesterday was the front end revamp, I ditched the custom triple tree for a set of Deuce triple trees, black powder coated. Installed the Flanders bar, a nightmare of massive proportions, due the narrow holes. Changed my brake pads and installed the new powder coated switch housing. Today will be focusing on wiring and torquing all the bolts and hopefully get the Stormer fired up.

Monday, October 11, 2010

Deja Vu

652-28846_100[3]

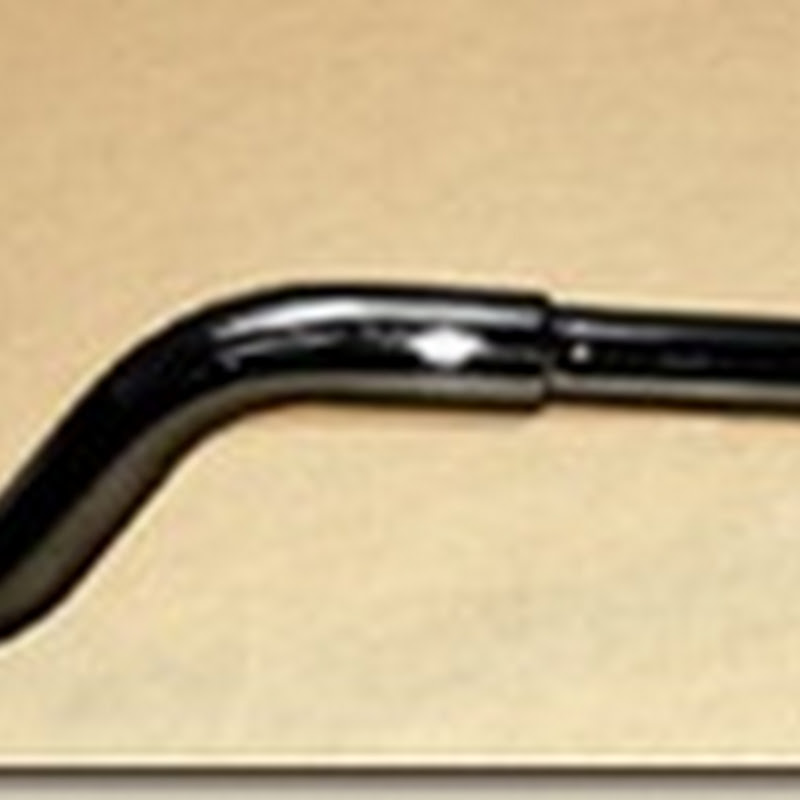

I have previously posted in regards to the Flanders TT Bars, well nothing have changed, in terms of quality and adding insult to injury, the machined holes drilled for internal wiring have extremely sharp edges which resulted in ripping the protective plastic cover on my controls wiring. You would expect better workmanship for a $200 handlebar. Nevertheless they remain the most confortable aggressive bars on the market!

Progress Report

67625_10150267665240290_657200289_15263823_4530147_n

Over the past couple of days, I have struggle in putting the bike together. Mundane installation has proved to be nightmares. The swing arm, took over 2 hours to install, I usually do it in 20 minutes. it was not my day. The way things are looking now is as follows, 90% of my parts to be powder coated are done. The result is beyond satisfactory. The rear end is bolted back together the engine covers are back in place. I started stripping the front yesterday to install the Flanders handlebars, still some work to be done , I hope my progress is 90% by tonight. Leaving the tank and electrical to be dealt with, over the course of tomorrow.

Saturday, October 9, 2010

Powder Coating Challenges

powder-coat-nozzle

Since glossy powder is not available in Kuwait I have decided to ship 2 LBS form the US. After delivering my parts to the coater, I was supposed to receive them on Thursday, unfortunately the cops raided his shop checking for illegal immigrants (Welcome to Kuwait), which resulted in a delay. I will check back with him tomorrow as I need to finish this build by Wednesday at the latest!

Todays Progress

65861_10150265790245290_657200289_15216463_950563_n

Today was a hectic day, started work at 16:30 and finished around 23:00. Oil Tank is back in place. New Oil Cooler installed, unfortunately I did not have a new oil filter, will get one tomorrow. Swapped my cams for a set of used TW8 as the the 6H were too torquey and has costed me 2 sets of clutches. Since I have already installed the new Screaming eagle hydraulic cam plate it was somehow easy to remove the cams. The 6H were mounted with a woodruff key which posed some challenge. The rocker arm base plate was a bit damaged by the high lift cam and needs some grinding, will take care of it, first thing in the morning.

Friday, October 8, 2010

Crossbone Assimilation

This is a 2008 Crossbones right out of the dealership, this baby will be converted over the coming week to a Bobber, will keep you updated on this beauty over the coming weeks.

Burn outs

No comments

Mobber

The Mobber was build last year, due to budget restrictions I kept it simple, although, I liked the bike, there was room for improvement, that I will cover in the coming posts.

Sticking to a proven formula

62844_10150250351950290_657200289_14871935_5537537_n

Each bike build has a distinctive style and each time we strive to outdo ourselves with budget constraint off course. My bike building policy is simple, keep it as close to stock as possible, so when if you need to sell it at certain point in time the custom aspect will not make people think twice about custom engines and part that are not available in this market,

Keep your frame stock
If you mod your tank keep the original at hand
Same goes for fender wheels etc…
Engine keep it HD

Now the enhancement are not only cosmetic. Lets tart with the frame, Lower rear and front, do not rake the bike if you plan on travelling. You can change the tires and rims, Rear you can go up to 200mm on a stock swing arm using stock HD parts, such as pulley and belt, rims from 16X5.5” – 17X6” even 18”, you only need to manufacture the spacers and grind the caliper and swing arm.

The Front I have opted for 180mm mounted on a 16X4.25” rim, you can go up 5.5” but want be able to fit a 200mm. I do recommend a fender to protect you from drainage water, its cool to drive without a fender, not that cool if you run into sewage water!

Drivability, the combo of 200+180 is a killer, the bike feel and handle like a sports bike, make sure that you r exhaust is high, RSD tracker is a good example of high clearance exhaust, yes your Harley will lean till you grind your foot pegs.

Handle Bars ape bars are cool if you wanna pose on the bike, if you are into serious thrashing, get a low bar, I opted for a mantel bar. Giving better control over my bike.

Seat console etc is stock HD crossbones of eBay.

Nest Post will cover the engine mods!
